Performance Comparison and Selection Guide for Submerged vs. Right-Angle Pulse Valves

•
•

Submerged and right-angle electromagnetic pulse valves represent two primary designs in pulse bag dust collectors, with structural differences directly affecting cleaning efficiency and energy consumption.



Structural & Operational Characteristics

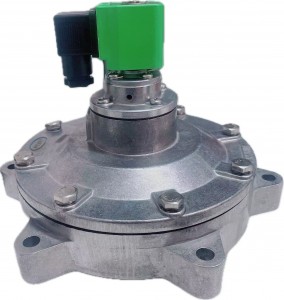

Submerged valves feature a fully integrated design flush with the air tank interior. Their dual-section diaphragm uses pressure differentials to control opening/closing, enabling direct airflow to filter bags with faster response and stronger jetting. Right-angle valves use perpendicular inlet/outlet configurations with standalone mounting, offering simplicity and ease of maintenance but slightly higher resistance due to 90° airflow turns.



Performance Benchmarks



• Jetting Efficiency: Submerged valves deliver 20% higher airflow than equivalent right-angle models, maintaining stability even at low pressures (0.3MPa).
• Energy Savings: Their rapid actuation reduces jetting time, achieving 15%+ compressed air savings through optimized diaphragm design.
• Installation Flexibility: Right-angle valves support threaded/flanged connections for versatile layouts, while submerged valves require custom air tank interfaces ideal for new installations or large-scale retrofits.



Selection Recommendations



• Unstable Pressure Environments: Prioritize submerged valves with their 0.3-0.8MPa pressure tolerance.
• Space Constraints: Right-angle valves’ compact design suits small systems or renovation projects.
• Long-Term 经济性: Submerged valves’ energy efficiency and extended diaphragm life (2+ million cycles) make them ideal for continuous industrial operations.
