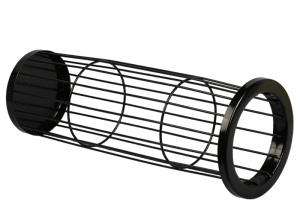

Filter cage
-
ust removal filter frame is the key component of industrial dust removal equipment
Dust removal filter frame is the key component of industrial dust removal equipment (such as bag dust collector, filter filter, etc.), the main role includes the following aspects:
Support filter medium
Provide structural support for filter bags, filter elements and other filter materials to ensure that they maintain a stable shape under the impact of air flow, avoid collapse or deformation, so as to maintain normal filtration function.
Uniformly distributed airflow
Through a reasonable frame design, the dust air flow is guided evenly through the filter medium, avoiding the local air flow too fast or too slow, improving the filtration efficiency and extending the service life of the filter material.
Protective filter medium
Reduce direct friction or collision between the filter medium and other parts of the equipment, especially in high wind speeds or environments with high dust concentrations, the frame prevents the filter material from being damaged due to mechanical stress.
Easy to maintain and replace
The frame structure is usually designed to be removable or modular, which facilitates the installation, disassembly and replacement of filter media, and reduces the difficulty and cost of equipment maintenance.
Enhanced system stability
As the skeleton of the dust removal equipment, the frame bears the weight of the filter unit and ensures that the entire system maintains structural stability under different working conditions (such as temperature changes, pressure fluctuations).
Optimized sealing performance
Part of the frame design combined with the sealing structure can effectively prevent the leakage of unfiltered dusty gas and ensure the overall tightness and filtration effect of the dust removal system.
In short, the dust removal filter frame ensures the efficient and stable operation of the dust removal equipment by supporting and protecting the filter medium and optimizing the airflow distribution, and is an indispensable part of the industrial dust removal system. -
How does the Venturi tube in the filter bag cage affect the performance of the dust pump system?
The Venturi tube in the filter bag cage affects the performance of the dust pump system in the following ways:
Improving Dust Removal Efficiency
- Enhanced Dust Detachment: During the pulse – jet cleaning process, the Venturi tube causes the high – pressure air from the blowpipe to accelerate as it passes through the narrow throat section. This acceleration creates a negative pressure zone, which induces a large amount of surrounding air to be sucked into the filter bag. The combined effect of the high – pressure air and the induced air causes the filter bag to expand and contract rapidly, generating strong vibrations. These vibrations are highly effective in dislodging dust particles adhered to the filter bag surface, even those that are difficult to remove, thereby improving the overall dust removal efficiency of the system.
- Thorough Cleaning of Filter Bags: The Venturi – induced air flow helps to ensure a more uniform cleaning of the filter bags. The air is distributed evenly throughout the filter bag, preventing uneven cleaning and reducing the likelihood of dust build – up in certain areas. This thorough cleaning helps to maintain the filtration performance of the filter bags over time, allowing them to continue to effectively capture dust particles and prevent dust from escaping into the atmosphere.
Reducing Energy Consumption
- Efficient Use of Compressed Air: The Venturi tube enables the dust pump system to achieve a significant cleaning effect with a relatively small amount of high – pressure compressed air. By inducing a large volume of surrounding air, it supplements the cleaning air volume, reducing the reliance on a large – volume supply of high – pressure air. This efficient use of compressed air helps to lower the energy consumption of the air compressor that supplies the compressed air, resulting in energy savings for the entire dust pump system.
- Optimized Cleaning Cycles: Due to the enhanced dust removal efficiency provided by the Venturi tube, the frequency of cleaning cycles can be reduced. The filter bags remain clean for longer periods, requiring less frequent activation of the pulse – jet cleaning system. This reduction in the number of cleaning cycles further contributes to energy savings, as each activation of the cleaning system consumes a certain amount of energy.
Protecting the Filter Bags and System Components
- Reduced Mechanical Stress on Filter Bags: The gentle yet effective cleaning action of the Venturi – enhanced air flow helps to reduce the mechanical stress on the filter bags. The even distribution of air and the controlled expansion and contraction of the filter bags during cleaning minimize the occurrence of local stress concentrations, which can lead to premature wear and tear of the filter bags. By prolonging the service life of the filter bags, the Venturi tube helps to reduce the frequency of filter bag replacements, thereby reducing maintenance costs and downtime of the dust pump system.
- Prevention of System Clogging: The efficient dust removal achieved by the Venturi tube helps to prevent dust from accumulating and clogging the filter bags, as well as other components of the dust pump system such as the ducts and the dust – collecting hopper. Clogging can lead to increased resistance to air flow, reduced system efficiency, and potential damage to the system. By maintaining a clean and unobstructed flow path, the Venturi tube helps to ensure the smooth operation of the dust pump system and protects its various components from damage caused by dust build – up.
-
Can you provide more details about the Venturi tube in the filter bag cage?
Here are the detailed descriptions about the Venturi tube in the filter bag cage:
Structure
- The Venturi tube consists of a convergent section, a throat section, and a divergent section. The convergent section gradually narrows the flow channel of the gas, causing the gas velocity to increase and the pressure to decrease. The throat section is the narrowest part of the Venturi tube, where the gas reaches the maximum velocity and the minimum pressure. The divergent section then gradually expands the flow channel, allowing the gas velocity to decrease and the pressure to recover. In the filter bag cage, the Venturi tube is usually made of stainless steel or other corrosion – resistant materials to ensure its durability and reliability in harsh industrial environments.
Working Principle
- When the pulse – jet cleaning system is activated, high – pressure air is injected into the filter bag through the blowpipe. As the air passes through the Venturi tube, the constricted throat section causes the air to accelerate. According to the principle of conservation of energy, the increase in air velocity leads to a decrease in static pressure, creating a negative pressure zone. This negative pressure zone induces a large amount of surrounding air to be sucked into the filter bag. The combined effect of the high – pressure air from the blowpipe and the induced air causes a rapid expansion and contraction of the filter bag, generating a strong vibration that effectively detaches the dust adhered to the filter bag surface.
Functions
- Enhanced Dust Removal Efficiency: By inducing a large volume of additional air, the Venturi tube significantly increases the air volume and momentum entering the filter bag during the cleaning process. This powerful air flow can more effectively dislodge the dust particles, especially those that are firmly attached to the filter bag, thereby improving the dust removal efficiency and ensuring the cleanliness of the filter bag.
- Reduced Energy Consumption: The Venturi tube enables the use of a relatively small amount of high – pressure air to achieve a large – scale cleaning effect. It utilizes the energy – saving principle of inducing surrounding air, reducing the need for a large amount of high – pressure air supply. This helps to lower the energy consumption of the dust removal system, resulting in significant energy savings and reduced operating costs.
- Uniform Cleaning: The design of the Venturi tube ensures a relatively uniform distribution of the air flow entering the filter bag. This uniformity helps to avoid local over – cleaning or under – cleaning, ensuring that the entire filter bag is cleaned evenly. As a result, the service life of the filter bag is prolonged, and the filtration performance of the dust collector is maintained at a stable level.
-
High-Quality Steel Filter Bag Cage with Venturi for Industrial Dust Pump Systems
Structure and Principle
- Structural Composition: It is mainly made of high-quality steel, including longitudinal ribs and support rings. The longitudinal ribs are evenly distributed to provide strength and stiffness, and the support rings maintain the shape of the filter bag. It is also equipped with a Venturi tube, generally installed at the top of the filter bag, and cooperates with the blowpipe.
- Working Principle: The dusty gas enters the bag filter. The dust is intercepted on the outer surface of the filter bag, and the clean gas is discharged through the inside of the filter bag. During dust cleaning, the pulse valve opens, and compressed air is ejected from the blowpipe. Through the Venturi tube, the surrounding air is induced to enter the filter bag, making the filter bag expand sharply in an instant and shake off the dust.
Performance Advantages
- High Strength and Stability: High-quality steel ensures that the filter bag cage can withstand the gas pressure of the filter bag during the filtration and dust cleaning processes, preventing damage and deformation during transportation and installation, and ensuring long-term stable operation.
- Good Corrosion Resistance: Through treatments such as galvanizing, powder coating, and surface silicone spraying, it can resist the corrosion of dust in different industrial environments and extend its service life.
- Efficient Dust Cleaning: The Venturi tube can induce a large amount of surrounding air to enter the filter bag, enhancing the dust cleaning effect, reducing the frequency of dust cleaning, improving the efficiency of the dust collector, and reducing energy consumption.
Application Fields
- Metallurgical Industry: Such as steel plants and non-ferrous metal smelters. A large amount of dust is generated during the processes of ore crushing and smelting, and this equipment can be used for treatment.
- Chemical Industry: In chemical plants, various dusts and harmful particles are generated during the production process. This filter bag cage can effectively filter them to protect the environment and the health of workers.
- Building Materials Industry: In cement plants, stone material plants, etc., during the links of raw material grinding, cement production, and building material processing, this equipment can be used to control dust emissions
-

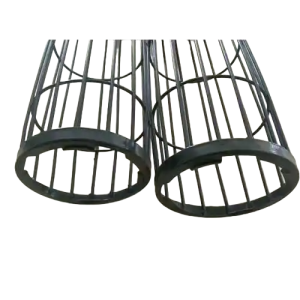

304 stainless steel filter cage, precision manufacturing, suitable for dust filter bag
Are you looking for high – quality and durable industrial dust – collection accessories? This 304SS filter cage is definitely the best choice. Made of high – quality 304 stainless steel, each frame has undergone strict quality control and has super strength and anti – deformation ability.
In a high – intensity working environment, it can still provide reliable support for the filter bags, preventing the filter bags from collapsing and being damaged, and extending the service life of the filter bags. Moreover, its surface is smooth, making it difficult for dust to adhere and accumulate, and it is easy to clean and maintain. Invest in our 304SS filter cages to inject strong impetus into your industrial dust – collection system, reduce operating costs, and create more value.
-
Filter cages for industrial equipment
We deeply understand that different industrial scenarios have different requirements for dust – collection equipment. Therefore, we launch a professional customization service for galvanized filter cages. No matter the size of your dust – collection system or what unique requirements you have for filtration accuracy and dimensional specifications, we can rely on advanced technology and rich experience to create exclusive filter cages for you.
Every link from design to production strictly adheres to high standards, ensuring that the customized galvanized filter cages seamlessly cooperate with your dust filter bags, precisely filtering every dust particle, escorting your production environment, and helping enterprises achieve the goals of green and efficient production.
-
304SS Filter Cages for Industrial Dust Collection
In the field of industrial dust collection, precise fit is of vital importance. Our 304SS filter cages are crafted through precision processes to perfectly match various dust filter bags. The 304 stainless – steel material endows them with excellent corrosion resistance. Whether in a humid and dusty environment or under mild acid – alkali erosion conditions, they can operate stably and are not easily damaged for long – term use.
Their scientific and reasonable structural design effectively supports the filter bags, ensuring full utilization of the filtration area and greatly enhancing dust – collection efficiency. It helps enterprises upgrade the cleanliness of their production environments and easily meet environmental protection challenges. Choosing our 304SS filter cages means choosing an efficient and durable industrial dust – collection solution.
-
Dust removal framework
Professional custom manufacturer direct sales industrial dust collector bag dust filter bag can be processed and customized according to requirements
Professional customization of industrial dust collector accessories such as dust removal bags, pulse controllers, pulse valves, and dust removal skeletons
Dust removal frame, also known as dust removal bag cage, is an essential accessory of bag filter, used as a frame to support the dust removal filter bag. It can be compatible with six, eight, ten, twelve, sixteen, eighteen, twenty, and twenty-four ribs. The role of dust removal frame is very important and it is widely used in the dust removal industry, chemical industry, and other industrial places.
Shape:
(External filter type) (elliptical, diamond shaped)
Envelope type
Multi section frame (elliptical multi section frame, circular bag type multi section frame (plug-in, chuck type))
Finished frame (frame with Venturi tube, frame packaged in plastic bags or iron frames, neatly arranged diamond frame)
Specifications
rotundity ellipse. Flat shape Envelope shaped trapezoid. Star shaped Spring type other customized dust removal skeletons of various models according to customer requirements
Raw material: High quality low-carbon steel wire Galvanized steel wire Stainless steel wire, etc
Surface treatment: Galvanized Spray painting Anti corrosion treatment Surface organic silicon spraying, etc The surface organic silicon coating is particularly suitable for dust collector applications in large generator sets -
Spring filter bag
Parameters Items Information Materials Options Q235 carbon steel Type Spring With cap Bottom design Roud shape Working condition To match filter bags Temperature ranges Max. 120degree Matching: Polyester Design Spring flexiable Option： With Venturi Item Code AASF-Spring-130-R Trading information Trading information Delivery Description Quantuty Piece/Pieces FOB price$ Payment terms Quantity below Pieces Time Port Qty Piece/Pieces Packing ... -
Silicon coated filter cage
Parameters Items Information Materials Options Silicone coated-3m length Rod number 10 wires, 12 wires 16 wires Top design With top tube or venturi Bottom design Roud Working condition To match filter bags Temperature ranges 10-80 80-120, 120-240 T Item Code AASF-Silicon-147-12R Thickness of wire 4mm Temperature ranges 20-200 degree Trading information Trading information Delivery Description Quantuty Piece/Pieces FOB price$ Payment terms Qua... -
Finger Cross type filter socket frame
Parameters Items Information Materials Options SS304 Rod number 12 wires Connection type wire-cross type Bottom design Roud Working condition To match filter bags Temperature ranges 240 degree Matching: Fiberglass filter bag Design finger cross type Length can be customizing Item Code AASF-304SS-145-12-FC-R Trading information Trading information Delivery Description Quantuty Piece/Pieces FOB price$ Payment terms Quantity below Pieces Tim... -
Filterbag and cage with venturi
Parameters Items Information Materials Options Q235 Rod number 12 wires Top design With venturi Bottom design Roud Working condition To match filter bags Temperature ranges 120 degree Matching: Polyester filter bag Design V groove Length can be customizing Item Code AASF-Q130-12-R Trading information Trading information Delivery Description Quantuty Piece/Pieces FOB price$ Payment terms Quantity below Pieces Time Port Qty Piece/Pieces Pack...
