Dust Removal Equipment Controller: Principles, Functions and Technical Indicators

In modern industrial production, the widespread application of dust removal equipment is crucial for reducing environmental pollution, ensuring the safety of the production environment, and improving production efficiency. As the core component of the dust removal system, the performance of the dust removal equipment controller directly affects the operation of dust removal equipment. This article will delve into the working principles, main functions, and key technical indicators of the dust removal equipment controller.​

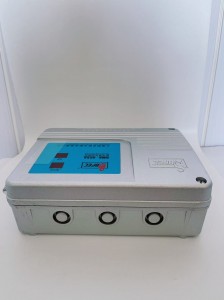

微信图片_20250317144438

Working Principles​
The dust removal equipment controller uses an industrial-grade chip as its control core and coordinates the operation of various components through precise logical operations. Its working process mainly revolves around the control of electromagnetic pulse valves. There are clear setting marks on the printed circuit board, facilitating operators to set the parameters of the controller according to actual needs. After the controller is started, electrical signals are output from each output terminal, which are used to control the opening of electromagnetic pulse valves. Once the electromagnetic pulse valves open, compressed air is blown to clean the filter bags. Meanwhile, the controller is equipped with manual operation buttons. During equipment debugging and the initial operation stage, operators can use these buttons for convenient operation to ensure the normal operation of the equipment.​
Take the pulse bag dust collector as an example. While filtering dust-laden gas, the dust collector conducts blow cleaning simultaneously. The dust removal controller outputs electrical signals in sequence to control the pulse valves to blow and clean one by one according to the preset pulse width and pulse interval. During this process, the controller monitors the working status of each output point in real time and displays it through the working indication device, enabling operators to quickly judge the equipment operation status.
